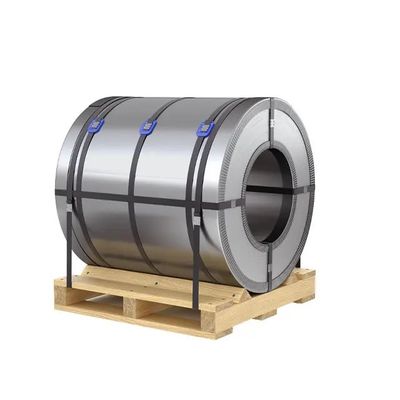

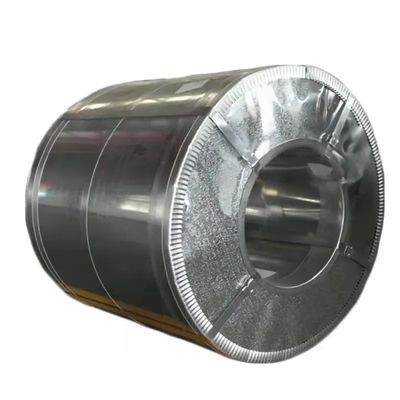

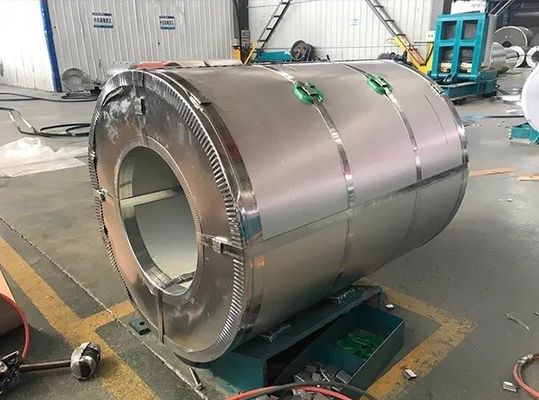

Zinc Coated Galvanized Steel Products 508mm Galvanized Coil Rust Resistance

Place of Origin China
Brand Name Tisco
Certification ISO/ TUV/ SGS /BV and so on
Minimum Order Quantity 1/ Ton
Price Negotiated
Packaging Details Exporting package/wooden box package/Or per customers’ requirement
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 10000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number Galvanized Coil Name Galvanized Steel Coil
Surface Treatment Galvanized Coated Processing Service Bending, Welding, Decoiling, Cutting, Punching
Application Boiler Plate, Making Pipes, Cutting Sheets, Making Small Tools, Tolerance ±1%
Material SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51 Technology Hop-dipped Galvanized
Type Steel Plate, Galvanized Steel Sheet Zinc Coating 30g - 275g / M2
Coil ID 508 Mm - 610 Mm
High Light

Zinc Coated Galvanized Steel Products

,

508mm Galvanized Coil

,

Resistance Galvanized Steel Products

Leave a Message
Product Description

Zinc-Coated Galvanized Steel Coil For Enhanced Resistance To Weathering





Galvanized steel coil is a flat-rolled steel product that is coated with a thin layer of zinc on both sides.

The process of galvanizing involves passing the steel through a molten bath of zinc at high temperatures.

Galvanized steel coil is commonly used in a variety of industries, including construction, automotive, and manufacturing.

The zinc coating provides corrosion resistance to the steel, making it ideal for outdoor applications or environments with high humidity.

Galvanized steel coil can be further processed into a wide range of products, such as sheets, strips, and tubes.



Item name Galvanized steel coil / strip
Grade   DX51D+Z S250GD+Z
SGCC DX52D+Z S280GD+Z
SGCD DX53D+Z S350GD+Z
SGCE DX54D+Z S550GD+Z
  DX56D+Z
Thickness 0.12 ~ 3.00 mm (cold rolled)
1.20 ~ 4.60 mm (Hot-rolled )
Width 10 - 600 mm (strip)
600 - 1250 mm (coil)
Tolerance Thickness: ±0.01 mm
Width: ±2 mm
Coil ID 508 mm - 610 mm
Coil weight 3 - 8 ton or as client requirement.
Zinc coating 30g - 275g / m2
Spangle Big spangle,Regular spangle,Mini spangle,Zero spangle
Surface treatment Oil,Passivation, Chromated, Skin-passed, Anti-finger Print
HS code code 72104900
Application Widely used in road, railway, civil construction, water conservancy construction; all kinds of machinery, electrical appliances, window protection and aquaculture, etc.
Package Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)
Delivery time Within 15 workdays after deposit received
Remarks Insurance per to Contract terms;
MTC will be handed on with shipping documents;
We accept the third party certificatation test.



STEEL GRADE CHEMICAL COMPOSITION % MECHANIC PROPERTY C.B OF COATING
C Si Mn S P T.S Y.S E.L COATING
x103 x103 x102 x103 x103 Mpa Mpa % d=0 180° G/M²
JIS G3302 SGCC 12 30 41 31 21 480 300 13 OK Z60-150
JIS G3302 SGCH 12 10 21 18 8 680 650 20 OK Z60-150
ASTM A653 CS.B 29 30 60 35 30 386 250-380 20 OK Z60-275
DX51D+Z 20 21 18 1.8 11 355 245 38 OK Z60-275
G550 12 6 73 5 17 715 654 8 OK Z60-275



Zinc Coated Galvanized Steel Products 508mm Galvanized Coil Rust Resistance 0Zinc Coated Galvanized Steel Products 508mm Galvanized Coil Rust Resistance 1



Application



Zinc Coated Galvanized Steel Products 508mm Galvanized Coil Rust Resistance 2Zinc Coated Galvanized Steel Products 508mm Galvanized Coil Rust Resistance 3Zinc Coated Galvanized Steel Products 508mm Galvanized Coil Rust Resistance 4Zinc Coated Galvanized Steel Products 508mm Galvanized Coil Rust Resistance 5



Delivery



Zinc Coated Galvanized Steel Products 508mm Galvanized Coil Rust Resistance 6



FAQ



Q: What kind of work does your company do?
A: Our company is a professional manufacturer.
We mainly produces steel plate/pipe/coil/round bars


Q: What are the advantages of your company?
A:
(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance based on BL copy or LC at sight.
If you have another question, please contact us as below

Q: What about your price?
A: Our price is very competitive because we are a factory.
Pls feel free to contact us if you are interested in our products.

Q: How long is your delivery time?
A: Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality
assurance.Usually the delivery time is within5 days after we received your deposit.
