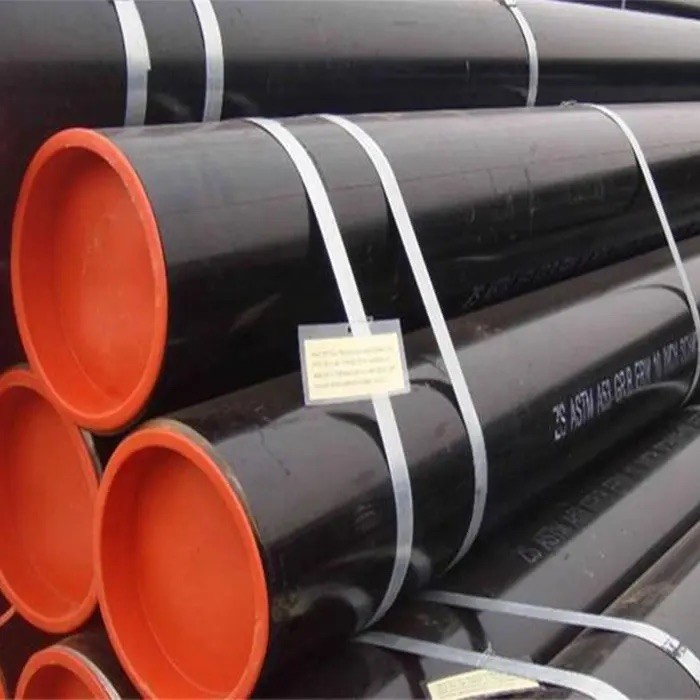

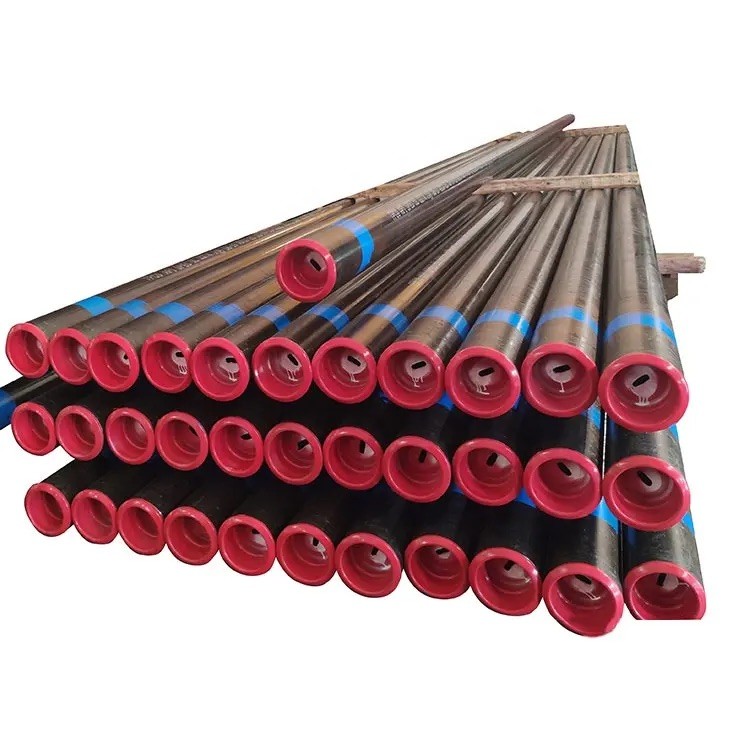

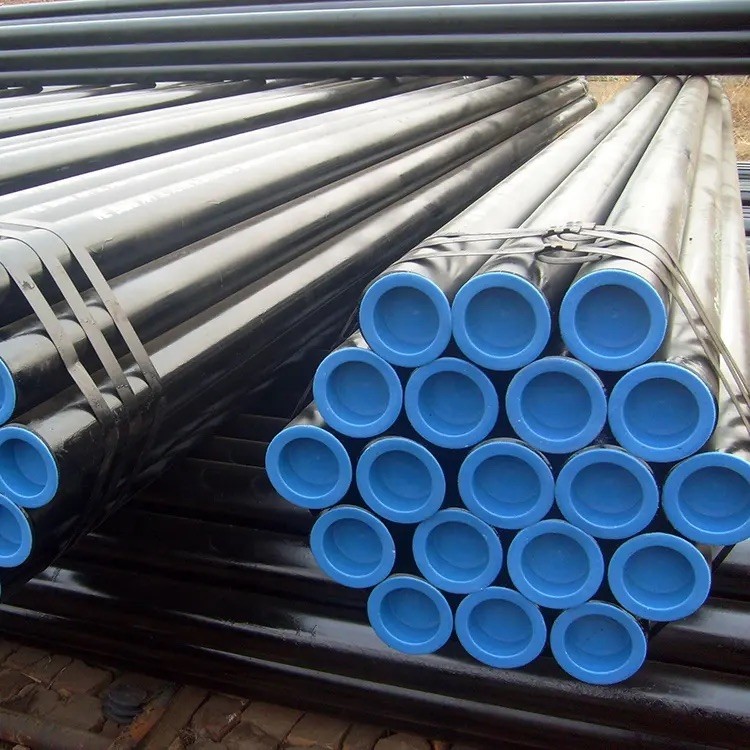

Decoiling Carbon Steel Api Pipe 1000mm Carbon Steel Boiler Pipe Durability
| Place of Origin | China |
|---|---|
| Brand Name | Tisco |
| Certification | ISO/ TUV/ SGS /BV and so on |
| Model Number | Carbon Steel Pipe |
| Minimum Order Quantity | 1/ Ton |
| Price | Negotiated |
| Packaging Details | Exporting package/wooden box package/Or per customers’ requirement |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Carbon Steel Pipe | Shape | Square, Rectangular, Round |
|---|---|---|---|
| Tolerance | ±1% | Out Diameter | 10-1000mm |
| Wall Thickness | 1-80mm | Length | 1-12m |
| Alloy Or Not | Non-Alloy | Processing Service | Punching, Cutting, Bending, Decoiling |
| High Light | 1000mm Carbon Steel Api Pipe,Durability Carbon Steel Api Pipe,Decoiling Carbon Steel Boiler Pipe |
||
Product Description
Carbon Steel Pipe With Coating For Enhanced Durability
Carbon steel pipe is suitable for use in the agriculture industry for irrigation systems and other applications.
In the mining industry, carbon steel pipes are used for transporting materials and fluids, as well as for structural support.
The aerospace industry also uses carbon steel pipes for various applications, including hydraulic systems and structural support.
Carbon steel pipe is commonly used in power plants for transporting steam, water, and other fluids.
The material is also suitable for use in the food and beverage industry, as it is non-toxic and does not leach harmful chemicals.
| Product | Carbon Steel Seamless Pipe | ||
| Seamless Pipe | China | GB/T8162/T8163 GB5310/6579/9948 | |
| U.S.A. |
ASTM A53/A106/A178/A179/A192/A210/A213/A333/A335/A283/A135/A214/ 315/A500/A501/A519/A161/A334; API 5L/5CT |
||
| Japan | JIS G3452/G3454/G3456/G3457/G3458/G3460/3461/3462/3464 | ||
| German | DIN 1626/17175/1629-4/2448/2391/17200 SEW680 | ||
| Russia | GOST 8732/8731/3183 | ||
| Material and Grade | China | 10#, 20#, 16Mn, 20G, 15MoG, 15CrMo, 30CrMo,42Crmo, 27SiMn, 20CrMo | |
| U.S.A. | Gr. B/Gr.A/A179/A192/A-1/T11/T12/T22/P1/FP1/T5/4140/4130 | ||
| Japan | STPG38,STB30,STS38,STB33,STB42,STS49,STBA23,STPA25,STPA23 | ||
| German | ST33,ST37,ST35,ST35.8,ST45,ST52,15Mo3,13CrMo44, 1.0309, 1.0305, 1.0405 | ||
| Russia | 10, 20, 35, 45, 20X | ||
| Out Diameter | 10-1000mm | ||
| Wall Thickness | 1-80mm | ||
| Length | 1-12m | ||
| Protection | Plastic caps | ||
| Section Shape | Square, Rectangular, Round, | ||
| Packing terms | Labeled and bundled together with steel strip | ||
| Shipment terms | Containers or bundles by sea,one 20" container can load about 20 tons(5.8meters long),one 40" container can load about 23-25tons(less than 11.8meters long) | ||
| Quality Certificate | ISO, API, Mill Test Certificate | ||
| Ends | Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. | ||
| Surface Treatment | 1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement |
||
| Product Application | 1. Fence, greenhouse, door pipe,greenhouse 2. Low pressure liquid, water, gas, oil, line pipe 3. For both indoor and outdoor the building construction 4. Widely used in scaffolding construction which is much cheaper and convenient |
||
| N.D. | O.D. | SCH 10 | SCH 30/40 | ||||||||
| W.T. | NORMAL WEIGHT | W.T. | NORMAL WEIGHT | ||||||||
| (mm) | (INCH) | (mm) | (inch) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) |
| 15 | 1/2'' | 21.3 | 0.84 | ---- | ---- | ---- | ---- | 2.77 | 0.109 | 1.27 | 0.85 |
| 20 | 3/4'' | 26.7 | 1.05 | 2.11 | 0.083 | 1.28 | 0.96 | 2.87 | 0.113 | 1.69 | 1.13 |
| 25 | 1'' | 33.4 | 1.315 | 2.77 | 0.109 | 2.09 | 1.41 | 3.38 | 0.133 | 2.5 | 1.68 |
| 32 | 1.1/4'' | 42.2 | 1.66 | 2.77 | 0.109 | 2.69 | 1.81 | 3.56 | 0.14 | 3.39 | 2.27 |
| 40 | 1.1/2'' | 48.3 | 1.9 | 2.77 | 0.109 | 3.11 | 2.09 | 3.68 | 0.145 | 4.05 | 2.72 |
| 50 | 2'' | 60.3 | 2.375 | 2.77 | 0.109 | 3.93 | 2.64 | 3.91 | 0.154 | 5.45 | 3.66 |
| 65 | 2.1/2'' | 73 | 2.875 | 3.05 | 0.12 | 5.26 | 3.53 | 5.16 | 0.203 | 8.64 | 5.8 |
| 80 | 3'' | 88.9 | 3.5 | 3.05 | 0.12 | 6.46 | 4.34 | 5.49 | 0.216 | 11.29 | 7.58 |
| 90 | 3.1/2'' | 101.6 | 4 | 3.05 | 0.12 | 7.41 | 4.98 | 5.74 | 0.226 | 13.58 | 9.12 |
| 100 | 4'' | 114.3 | 4.5 | 3.05 | 0.12 | 8.37 | 5.62 | 6.02 | 0.237 | 16.09 | 10.8 |
| 125 | 5'' | 141.3 | 5.563 | 3.4 | 0.134 | 11.58 | 7.78 | 6.55 | 0.258 | 21.79 | 14.63 |
| 150 | 6'' | 168.3 | 6.625 | 3.4 | 0.134 | 13.85 | 9.3 | 7.11 | 0.28 | 28.29 | 18.99 |
| 200 | 8'' | 219.1 | 8.625 | 4.78 | 0.188 | 25.26 | 16.96 | 7.04 | 0.277 | 36.82 | 24.72 |
| 250 | 10'' | 273.1 | 10.75 | 4.78 | 0.188 | 31.62 | 21.23 | 7.08 | 0.307 | 51.05 | 34.27 |
| Product name | Material | Standard | Size(mm) | Application |
| Low temperature tube | 16MnDG | GB/T18984- | OD:8-1240* | Apply to - 45 ℃ ~ 195 ℃ low temperature pressure vessel and low temperature heat exchanger pipe |
| 10MnDG | 2003 | WT:1-200 | ||
| 09DG | ASTM A333 | |||
| 09Mn2VDG | ||||
| 06Ni3MoDG | ||||
| ASTM A333 | ||||
| High-pressure boiler tube | 20G | GB5310-1995 | OD:8-1240* | Suitable for manufacturing high pressure boiler tube, header, steam pipe, etc |
| ASTMA106B | ASTM SA106 | WT:1-200 | ||
| ASTMA210A | ASTM SA210 | |||
| ST45.8-III | DIN17175-79 | |||
| General structure | 10#,20#,45#,27SiMn | GB/T8162- | OD:8-1240* | Apply to the general structure, engineering support, mechanical processing, etc |
| ASTM A53A,B | 2008 | WT:1-200 | ||
| 16Mn,Q345 | GB/T17396- | |||
| 1998 | ||||
| ASTM A53 | ||||
| Oil casing | J55,K55,N80,L80 | API SPEC 5CT | OD:60-508* | Used for extraction of oil or gas in oil Wells casing, used in oil and gas well sidewall |
| C90,C95,P110 | ISO11960 | WT:4.24-16.13 |
Delivery
FAQ
Q: What kind of work does your company do?
A: Our company is a professional manufacturer.
We mainly produces stainless steel plate/pipe/coil/round bars,as well as aluminum plate/pipe/coil/bar
Q: What are the advantages of your company?
A:
(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance based on BL copy or LC at sight.
If you have another question, please contact us as below
Q: What about your price?
A: Our price is very competitive because we are a factory.
Pls feel free to contact us if you are interested in our products.
Q: How long is your delivery time?
A: Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality
assurance.Usually the delivery time is within5 days after we received your deposit.
